Name: Factory Price Wholesale ISO Certified Tungsten Carbide DTH Bit For Borehole Well Drilling Hard Rock Button Tool
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: Mata palu ke-CIR
Price: 150 USD
Availability: InStock

Rumah Produk batu pengeboran alat

Factory Price Wholesale ISO Certified Tungsten Carbide DTH Bit For Borehole Well Drilling Hard Rock Button Tool

Detail produk:

Tempat asal:	Cina
Nama merek:	MIROC
Sertifikasi:	ISO
Nomor model:	Mata palu ke-CIR

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	＄150
Kemasan rincian:	Kotak kayu
Waktu pengiriman:	3 - 10 hari
Syarat-syarat pembayaran:	L/C,D/A,D/P,T/T,Western Union
Menyediakan kemampuan:	30000

Kontak

Detil Deskripsi produk

Nama Produk:	Mata palu DTH	Aplikasi:	Penambangan Batubara, Pengeboran Sumur, Pekerjaan Konstruksi
Keuntungan:	Performa Tinggi, Tahan Aus	Kata-kata kunci:	DTH Hammer Drill Bit
Bentuk tombol:	Bulat/Balistik/parabola/tajam/falt bottons	Sedikit wajah:	Center drop / Flat / cembung / cekung / bit wajah pengukur ganda
Kualitas:	Kemiripan kualitas 100% merek kelas atas dunia	Seri Betis:	COP, MISI, SD, DHD, BR, QL, BR, CIR dll.
Seri:	Tekanan udara rendah/tengah/tinggi DTH Hammer	Warna:	sesuai dengan kebutuhan Anda
Menyoroti:	ISO certified tungsten carbide DTH bit , hard rock borehole drilling tool , wholesale DTH bit for well drilling

Factory Price Wholesale ISO Certified Tungsten Carbide DTH Bit

Premium down-the-hole hammer bits for borehole well drilling in hard rock formations. Engineered for efficient ore mining, water well drilling, and exploration boreholes.

Product Description

These DTH drill bits are manufactured from high-quality forged alloy steel and fitted with tungsten carbide inserts. Precision-machined and heat-treated to withstand extreme down-hole conditions, they deliver reliable performance in both soft formations (carbonate rock, chalk, siltstone) and hard rock (limestone, granite, sandstone).

Key Specifications

Type	Down-the-Hole (DTH) Hammer Bit
Available Models	CIR130, CIR150, CIR170, Standard Thread Options
Popular Sizes	140mm, 175mm, 210mm
Material	High-grade Forged Alloy Steel + Tungsten Carbide Buttons
Heat Treatment	Precise hardening + Surface compression for fatigue resistance
Features	Wear-resistant, Efficient cutting, Gauge protection, Stable speed
Rock Compatibility	Soft: Chalk, Claystone / Medium: Limestone, Siltstone / Hard: Sandstone, Granite
Certification	ISO Certified

CIR Series Low Air Pressure DTH Bit Specifications

Type	Diameter (mm)	Number of Splines	Weight (kg)
CIR65	68	6	2.50
CIR70	76	6	3.40
CIR80	83	6	3.45
CIR80X	83	6	3.50
CIR90	90	6	3.50
CIR90	100	6	4.50
CIR90	130	6	9.50
CIR110	110	6	6.40
CIR110	123	6	8.50
CIR110W	110	6	6.50
CIR6110W	123	6	8.80
CIR6150	155	6	12.0
CIR150A	155	6	12.5
CIR150A	165	6	14.0

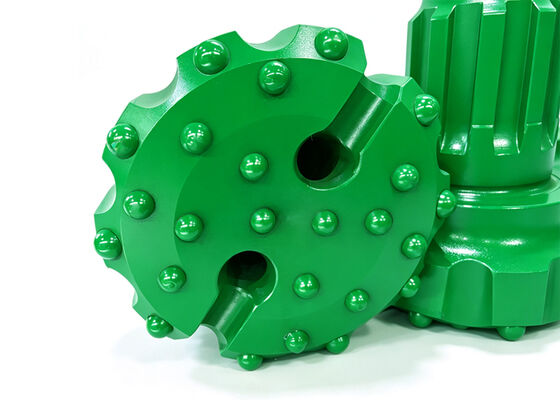

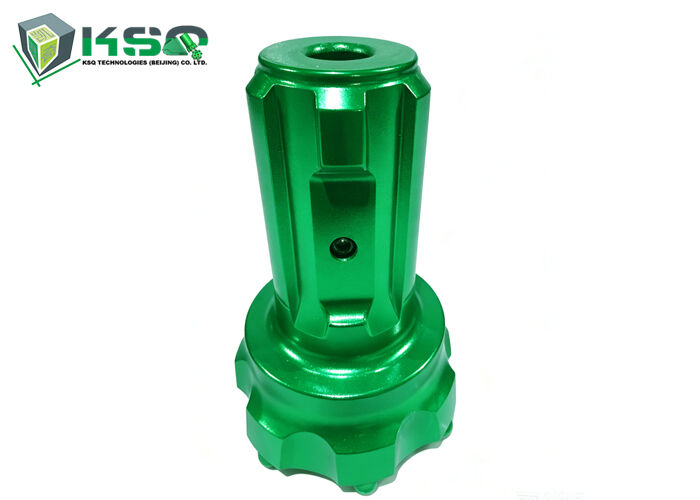

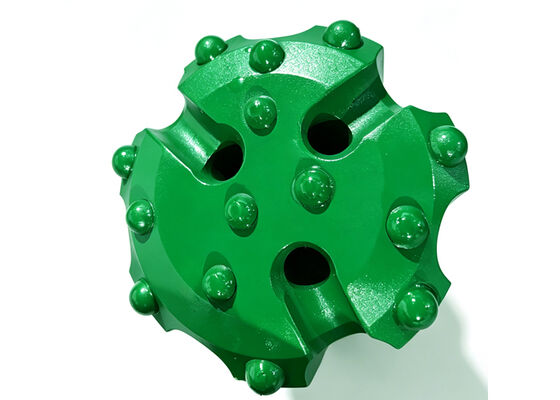

Product Images

Key Advantages

Longer Life: Superior alloy material outperforms competitors in wear resistance
High Efficiency: Sharp, wear-resistant buttons maintain high drilling speed
Stable Speed: Uses scraping and cutting action for consistent penetration
Gauge Retention: Excellent diameter protection ensures efficient use of cutting teeth and hole integrity
