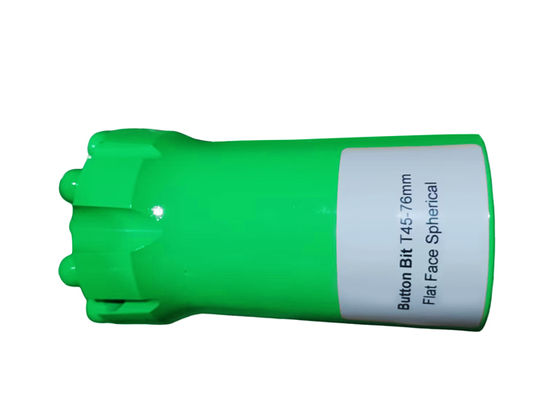

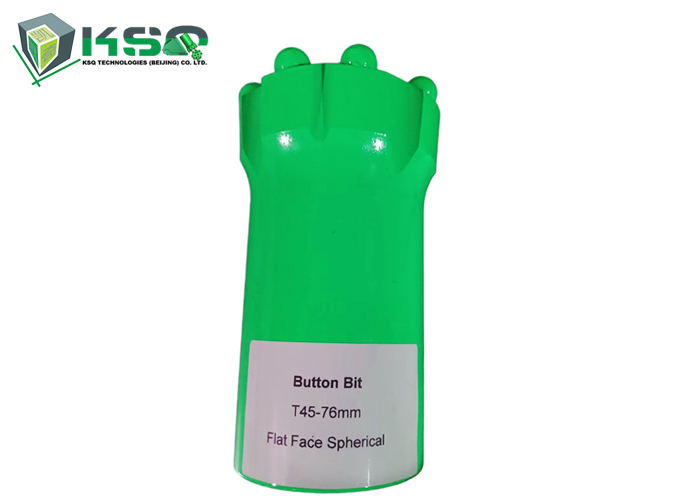

Name: Thread Button Bit T45-76mm Rock Drilling Tools Drill Bit
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: T45-76MM
Price: 508.50 USD
Availability: InStock

Rumah Produk batu pengeboran alat

Thread Button Bit T45-76mm Rock Drilling Tools Drill Bit

Detail produk:

Tempat asal:	CINA
Nama merek:	MIROC
Sertifikasi:	ISO
Nomor model:	T45-76MM

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Waktu pengiriman:	20-30
Menyediakan kemampuan:	3000

Kontak

Detil Deskripsi produk

Model no.:	T45-76MM	Perawatan permukaan:	galvanis
Kata kunci:	Sedikit tombol	Jenis tombol:	Bulat, Balistik, Kerucut
Jenis Thread:	T45	Warna:	Berdasarkan permintaan
Menyoroti:	T45 thread button drill bit , 76mm rock drilling bit , thread button rock drill tool

Thread Button Bit T45-76mm Rock Drilling Tools Drill Bit

Description

Our thread button drill bit size from 33mm-178mm, include thread type R28, R32, R38, T38, T45, T51, ST58, ST68 etc for kinds of button bit, reaming button bit, retract button bit, drop centre retract button bit.

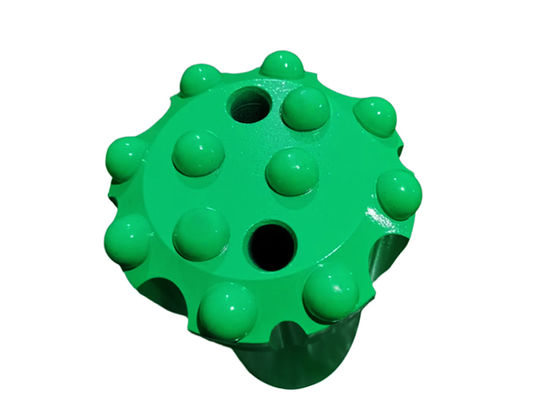

The button shapes of our button bits are spherical, ballitic, conical for customers to choose. The buttons can be hot insert to the body and welded to the body as per custmers need and many kinds of good materials are available.

Advantage

High Quality
Reasonable Price
High Efficiency
Delivery On Time

Application

The button bit is widely used for rock drilling, blasting holes and other drill works in quarries, coal mines, road and dam constructions and other similar projects.

Specification of button bits

Thread Button Bit	Diameter	Carbide size(mm)	Flushing hole	Weight (kg)
	mm \| in	Front \| Gauge	Front \| Side
		Qty×size \| Qty×size
R/T38 (1 1/2")	64 \| 2 1/2	3×11 \| 6×12	2 \| 1	1.62
	70 \| 2 3/4	4×10 \| 8×10	2 \| 1	1.98
	76 \| 3	4×11 \| 8×12	2 \| 1	2.28
	89 \| 3 1/2	6×11 \| 8×12	2 \| 2	3.32
T45 (1 3/4")	70 \| 2 3/4	4×10 \| 8×10	2 \| 1	2.24
	76 \| 3	4×11 \| 8×12	2 \| 1	2.46
	89 \| 3 1/2	6×12 \| 8×14	2 \| 2	3.52
	102 \| 4	7×12 \| 8×14	2 \| 2	4.46
	115 \| 4 1/2	8×12 \| 8×14	2 \| 2	6.68
T51 (2")	76 \| 3	4×12 \| 8×12	2 \| 1	3.62
	89 \| 3 1/2	6×12 \| 8×14	2 \| 2	4.48
	102 \| 4	7×12 \| 8×14	4 \| 1	5.26
	115 \| 4 1/2	8×12 \| 8×14	4 \| 1	7.62
	127 \| 5	9×12 \| 8×16	4 \| 1	8.58

Applications of rock drilling tools

Underground mining
Tunneling, quarrying

Competitive Advantage

High grade tungsten carbide inserts

Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment

Label:

Kontak Person: Mr. Yingkai Zhang

Tel: +86 18501231988

Produk terbaik

Model no.: T38

Panjang: Panjang rintisan

Bahan: Alloy Steel & Tungsten Carbides

Diameter: 76mm

Top hammer Rock drill Drilling tools T38-64mm Flat Face Spherical Thread Button Bit for Mining

Bit Tombol Utas: T38

Panjang: Panjang rintisan

Penggunaan: Pengeboran Logam, Pengeboran Batu

Warna: Berdasarkan permintaan

DHD3.5-95mm DTH Hammer Drill Bit for Mining, Quarry, Water Well Drilling Rig

Penggunaan: Pengeboran Sumur, Penambangan, Konstruksi, Penggalian

Bentuk - Wajah: Datar atau Cekung atau Cembung

Tekanan udara: Tekanan udara tinggi

Teknologi: Sisipan Tema

12° 41mm Rock Drilling Taper Button Bit untuk Quarrying dengan Kualitas Tinggi

Panjang: Panjang rintisan

Bahan: Alloy Steel & Tungsten Carbides

Industri yang berlaku: Penggalian, Pengeboran Lubang Kecil, Penambangan

Lancip: 6/7/11/12 Derajat

T45-210mm Threaded Drill Rod In Rock Drilling / Mining Coupling Sleeve T38-190mm

Nama Bagian: Lengan Kopling

Bahan: Baja paduan, crni

Kemasan rincian: Menurut kuantitas atau persyaratan

Menghadapi: Datar

Thread Button Bit	Diameter	Carbide size(mm)	Flushing hole	Weight (kg)
	mm \| in	Front \| Gauge	Front \| Side
		Qty×size \| Qty×size
R/T38 (1 1/2")	64 \| 2 1/2	3×11 \| 6×12	2 \| 1	1.62
	70 \| 2 3/4	4×10 \| 8×10	2 \| 1	1.98
	76 \| 3	4×11 \| 8×12	2 \| 1	2.28
	89 \| 3 1/2	6×11 \| 8×12	2 \| 2	3.32
T45 (1 3/4")	70 \| 2 3/4	4×10 \| 8×10	2 \| 1	2.24
	76 \| 3	4×11 \| 8×12	2 \| 1	2.46
	89 \| 3 1/2	6×12 \| 8×14	2 \| 2	3.52
	102 \| 4	7×12 \| 8×14	2 \| 2	4.46
	115 \| 4 1/2	8×12 \| 8×14	2 \| 2	6.68
T51 (2")	76 \| 3	4×12 \| 8×12	2 \| 1	3.62
	89 \| 3 1/2	6×12 \| 8×14	2 \| 2	4.48
	102 \| 4	7×12 \| 8×14	4 \| 1	5.26
	115 \| 4 1/2	8×12 \| 8×14	4 \| 1	7.62
	127 \| 5	9×12 \| 8×16	4 \| 1	8.58
