Name: Reverse Circulation Drilling Tools RC Hammer Drill Bit MR116-124mm
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: MR116-124mm
Price: 508.50 USD
Availability: InStock

Rumah Produk batu pengeboran alat

Reverse Circulation Drilling Tools RC Hammer Drill Bit MR116-124mm

Detail produk:

Tempat asal:	CINA
Nama merek:	MIROC
Sertifikasi:	ISO
Nomor model:	MR116-124mm

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Waktu pengiriman:	20-30
Menyediakan kemampuan:	3000

Kontak

Detil Deskripsi produk

Penggunaan:	untuk pengebor DTH	Bahan:	Baja mangan tinggi
Objek pertambangan:	Mesin batubara	Nama Produk:	Mata palu DTH
Aplikasi:	Penambangan Bijih, tambang batu, sumur air, lubang pengeboran	Keuntungan:	Tahan aus, kinerja tinggi, dengan harga kompetitif
Bentuk tombol:	tombol bulat/balistik/ogive	Desain Wajah:	Datar, cekung, cembung
Pembentukan:	Formasi hard rock sedang	Kata kunci:	DTH Hammer Drill Bit
Menyoroti:	RC hammer drill bit 124mm , reverse circulation drilling tools MR116 , rock drilling tools with warranty

MR116 bit is not a standalone tool but a drill bit designed for use with a Mincon MR116 RC Hammer, a type of Reverse Circulation (RC) drilling equipment, which is used in mineral exploration and water well drilling to collect rock samples. The "MR116" refers to the hammer model, and the bit's size range is typically between 121mm and 127mm (4.75" to 5").

Application:
Used in Reverse Circulation (RC) drilling for mineral exploration and water well drilling.

Compatibility:
Designed to fit with the Mincon MR116 RC hammer.

Size:
The drill bit typically has a size range of 121mm – 127mm (4.75″ – 5″).

Function:
The bit's role is to cut into the rock and create a hole, while the RC hammer's design allows for fast and efficient sample collection.

MR Series Specifications

Hammer Model	Hole	Size Range
MR116	4.75″ – 5″	121mm – 127mm
MR120	5″ – 5.625″	127mm – 143mm
MR132	5.4″ – 5.75″	137mm – 146mm

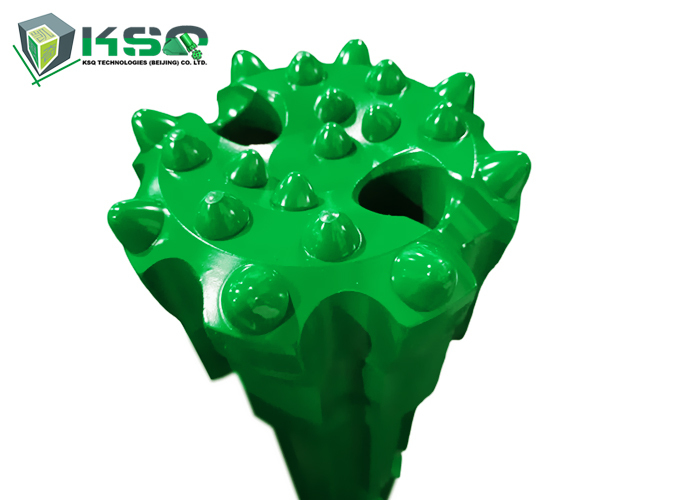

Reverse Circulation Drilling Tools RC Hammer Drill Bit MR116-124mm 0

Specifications:

1) face design: flat, convex, concave

2) inserts design: spherical, ballistic, parabolic

Features:

1) reliable quality

2) long service life

3) smooth flushing effect

4) designed to work with RC hammers

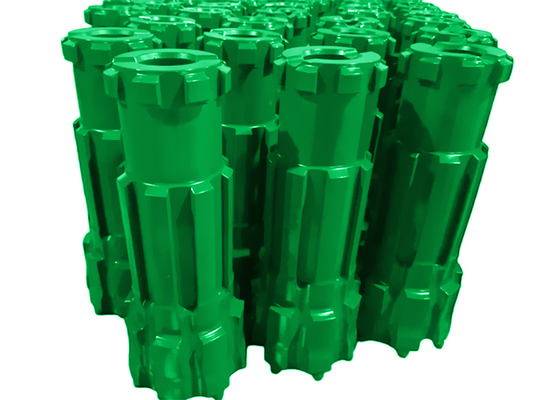

Reverse Circulation Drilling Tools RC Hammer Drill Bit MR116-124mm 1
