| Tempat asal: | Shandong, Cina |
| Nama merek: | MIROC |
| Sertifikasi: | ISO |
| Nomor model: | Bit Tombol Lancip 7 Derajat |
| Kuantitas min Order: | 50 pcs |
|---|---|
| Harga: | Negotiation |
| Kemasan rincian: | Karton, kotak kayu atau disesuaikan |
| Waktu pengiriman: | 15-20 hari |
| Menyediakan kemampuan: | 20.000 pcs per bulan |
| Bahan: | tungsten karbida | Sedikit Dia.: | 32mm hingga 42mm |
|---|---|---|---|
| tombol: | 4 tombol, 6 tombol, 7 tombol | Rok: | Rok Pendek, Rok Panjang |
| Lubang Pembilasan: | 2 atau 3 | Gelar lancip: | 4°46′, 7, 11, 12 derajat |
| Bentuk Tombol: | Balistik, Bulat, Kerucut | Ukuran Shank: | Hex 19mm, 22mm, 25mm |
| Cahaya Tinggi: | 7 derajat tombol meruncing bit,tombol meruncing bit 7 derajat,tombol ISO bit untuk pengeboran batu |
||
Deskripsi Produk

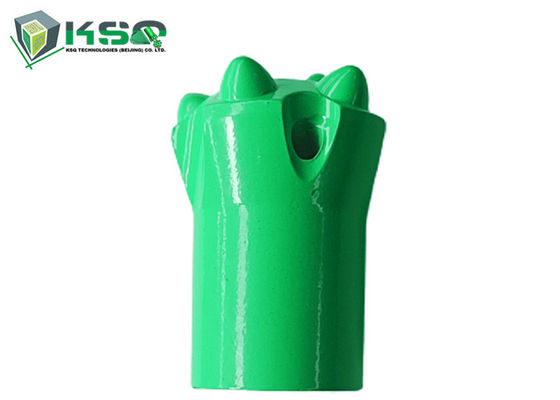

Bit tombol lancip, sebagai mata bor kecil, gunakan mata korek api lancip dengan batang yang akan digunakan untuk kaki udara atau bor tangan jack hammer di penggalian dan penambangan.
spesifikasi
| 7° Tombol Tapered Bit | Sedikit Dia. | Tombol dan Ukuran (mm) | Lubang Pembilasan | Berat | Kode Produk | |||
| mm | inci | Depan | Mengukur | Depan | Samping | kg | ||
| Sedikit Kancing, Rok Pendek BS4XX |
32 | 1 1/4 | 1x8 | 3x8 | 1 | 1 | 0.24 | BS432-7D-22 |
| 36 | 1 3/7 | 1x8 | 3x9 | 1 | 1 | 0.37 | BS436-7D-22 | |
| 38 | 1 1/2 | 1x8 | 3x9 | 1 | 1 | 0.37 | BS438-7D-23 | |
| 40 | 1 4/7 | 1x8 | 3x9 | 1 | 1 | 0.38 | BS440-7D-23-1 | |
| 40 | 1 4/7 | 1x9 | 3x10 | 1 | 1 | 0.4 | BS440-7D-23-2 | |
| 40 | 1 4/7 | 1x9 | 3x9 | 1 | 1 | 0.4 | BS440-7D-23-3 | |
| 42 | 1 2/3 | 1x8 | 3x9 | 1 | 1 | 0.4 | BS442-7D-23-1 | |
| 42 | 1 2/3 | 1x9 | 3x10 | 1 | 1 | 0.43 | BS442-7D-23-2 | |
| 42 | 1 2/3 | 1x9 | 3x9 | 1 | 1 | 0.43 | BS442-7D-23-3 | |
| Sedikit Kancing, Rok Pendek BS6XX |
34 | 1 1/3 | 2x7 | 4x7 | 1 | 1 | 0,29 | BS634-7D-22 |
| Sedikit Kancing, Rok Pendek BS7XX |
33 | 1 2/7 | 2x7 | 5x7 | 2 | 1 | 0,26 | BS733-7D-22 |
| 35 | 1 3/8 | 2x7 | 5x8 | 1 | 1 | 0.33 | BS735-7D-22 | |
| 36 | 1 3/7 | 2x7 | 5x8 | 1 | 1 | 0.37 | BS736-7D-23 | |
| 38 | 1 1/2 | 2x7 | 5x8 | 1 | 1 | 0.38 | BS738-7D-23-1 | |
| 38 | 1 1/2 | 2x7 | 5x9 | 2 | 1 | 0.38 | BS738-7D-23-2 | |
| 40 | 1 4/7 | 2x7 | 5x9 | 1 | 1 | 0.4 | BS740-7D-23 | |
| 42 | 1 2/3 | 2x8 | 5x9 | 1 | 1 | 0.43 | BS742-7D-23 | |
| Sedikit Kancing, Rok Panjang BL7XX |
32 | 1 1/4 | 2x7 | 5x7 | 1 | 1 | 0,3 | BL732-7D-22 |
| 33 | 1 2/7 | 2x7 | 5x7 | 1 | 1 | 0.31 | BL733-7D-22 | |
| 35 | 1 3/8 | 2x7 | 5x8 | 1 | 1 | 0.36 | BL735-7D-22 | |
| 38 | 1 1/2 | 2x7 | 5x9 | 1 | 1 | 0,41 | BL738-7D-22 | |
| 41 | 1 5/8 | 2x7 | 5x9 | 1 | 1 | 0,42 | BL741-7D-23 | |
