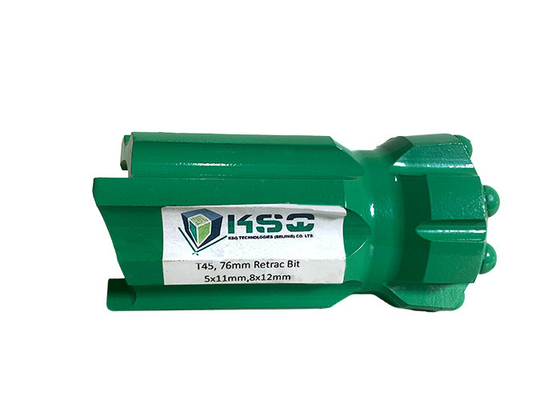

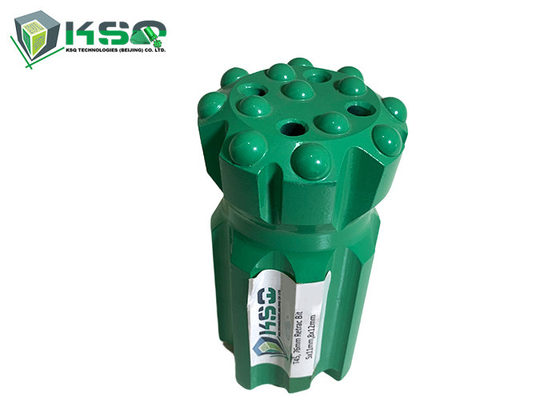

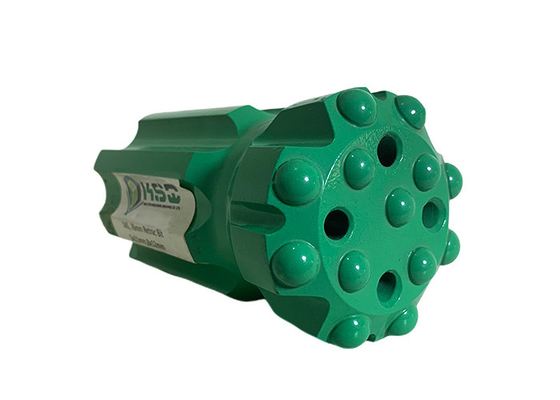

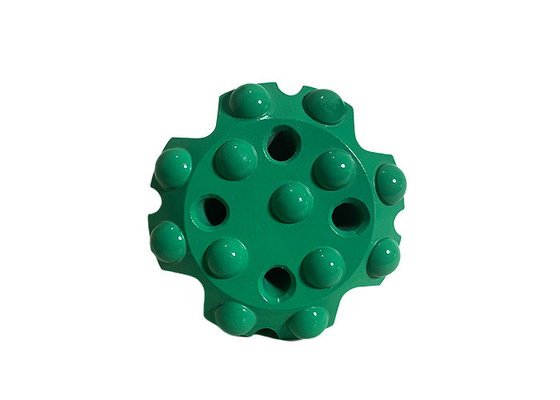

Mining T45 Alloy Steel Spherical Drill Bits Threaded Drill Bits
Keterangan
Jenis mata bor ini terkenal karena ketahanan ausnya pada formasi batuan lunak hingga keras (antara kekuatan tekan 55 Mpa hingga 165 Mpa).Menampilkan sisipan tungsten karbida bulat yang dikenal memiliki konfigurasi kuat terhadap fraktur karbida.Direkomendasikan untuk menghilangkan deviasi lubang.
• Banyak digunakan drifting dan tunneling
• Desain muka bit sangat ideal untuk formasi batuan lunak hingga sedang
• Dengan Retrac Wings untuk membantu memandu mata bor masuk dan keluar lubang
• Efektif dalam pengeboran lubang lurus
Warna: Hijau, Biru atau Berdasarkan kebutuhan Pelanggan
Bahan: Tungsten carbide dan baja paduan kekuatan tinggi
Pemrosesan: Penggilingan CNC dan proses perlakuan panas berpemilik
Mengetik: T45 Retrac Button Bit Spherical Buttons
Aplikasi
• Pertambangan bawah tanah
• Terowongan
Keunggulan kompetitif
• Sisipan tungsten carbide bermutu tinggi
• Badan mata bor dibuat dari baja bermutu tinggi dan diproses menggunakan mesin CNC canggih dan perlakuan panas
Spesifikasi
Nomor Bagian | Diameter Bit (mm) | Diameter Bit (inci) |
Tombol Depan (Tidak. x mm) |
Tombol pengukur (Tidak. x mm) |
4148300833 | 70 | 2 3/4 | 4x11 | 8x11 |
4148300834 | 70 | 2 3/4 | 3x11, 1x9 | 6x11 |
4148300835 | 70 | 2 3/4 | 4x10, 1x10 | 8x11 |
4148300836 | 76 | 3 | 4x11 | 8x11 |
4148300837 | 76 | 3 | 5x11 | 8x12 |
4148300838 | 76 | 3 | 3x11, 1x11 | 6x13 |
4148300839 | 76 | 3 | 4x11, 1x11 | 8x11 |
4148300840 | 76 | 3 | 4x11, 1x11 | 8x12 |
4148300841 | 89 | 3 1/2 | 4x13 | 8x13 |
4148300842 | 89 | 3 1/2 | 6x11 | 8x12 |
4148300843 | 89 | 3 1/2 | 3x11, 2x11 | 6x13 |
4148300844 | 89 | 3 1/2 | 4x11, 1x11 | 8x12 |
4148300845 | 89 | 3 1/2 | 4x13, 1x13 | 8x13 |
4148300846 | 102 | 4 | 5x14 | 8x14 |
4148300847 | 102 | 4 | 6x13 | 8x16 |
4148300848 | 102 | 4 | 3x13, 2x13 | 6x14 |
4148300849 | 102 | 4 | 4x13, 1x13 | 8x14 |
4148300850 | 102 | 4 | 4x13, 2x13 | 8x13 |
Kode Produk dan Deskripsi Singkat | Sudut |
Pembilasan Depan lubang |
Pembilasan Samping lubang |
Bobot (kg) |
R1270-T45-S, Bit Tombol Retrac T45, Tombol Bulat | 40 ° | 2 | - | 2.5 |
R1070-T45-S, Bit Tombol Retrac T45, Tombol Bulat | 35° | 3 | - | 2.5 |
R1370-T45-S, Bit Tombol Retrac T45, Tombol Bulat | 35° | 4 | - | 2.5 |
R1276-T45-S, Bit Tombol Retrac T45, Tombol Bulat | 40 ° | 2 | - | 3.2 |
R1376-T45-S-1, Bit Tombol Retrac T45, Tombol Bulat | 35° | 2 | 1 | 3.2 |
R1076-T45-S, Bit Tombol Retrac T45, Tombol Bulat | 35° | 3 | - | 3.2 |
R1376-T45-S-2, Bit Tombol Retrac T45, Tombol Bulat | 35° | 4 | - | 3.2 |
R1376-T45-S-3, Bit Tombol Retrac T45, Tombol Bulat | 35° | 4 | - | 3.2 |
R1289-T45-S, Bit Tombol Retrac T45, Tombol Bulat | 40 ° | 2 | - | 5.4 |
R1489-T45-S, Bit Tombol Retrac T45, Tombol Bulat | 35° | 2 | - | 5.4 |
R1189-T45-S, Bit Tombol Retrac T45, Tombol Bulat | 35° | 3 | 1 | 5.4 |
R1389-T45-S-1, Bit Tombol Retrac T45, Tombol Bulat | 35° | 4 | - | 5.4 |
R1389-T45-S-2, Bit Tombol Retrac T45, Tombol Bulat | 35° | 4 | - | 5.4 |
R13102-T45-S-1, Bit Tombol Retrac T45, Tombol Bulat | 40 ° | 2 | - | 6.8 |
R14102-T45-S-1, Bit Tombol Retrac T45, Tombol Bulat | 40 ° | 2 | 1 | 6.8 |
R11102-T45-S, Bit Tombol Retrac T45, Tombol Bulat | 35° | 3 | 1 | 6.8 |
R13102-T45-S-2, Bit Tombol Retrac T45, Tombol Bulat | 35° | 4 | - | 6.8 |
R14102-T45-S-2, Bit Tombol Retrac T45, Tombol Bulat | 35° | 4 | 1 | 6. |
