| Sertifikasi: | ISO |

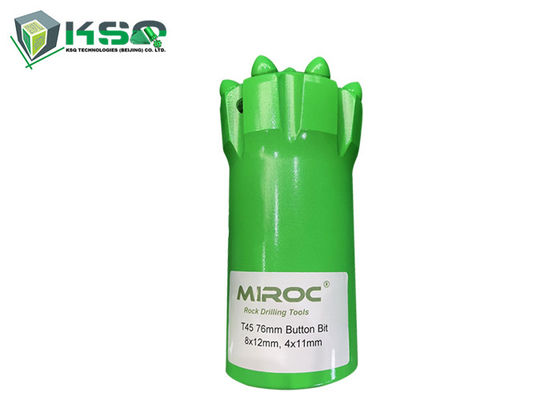

| Nomor model: | T45 76mm Bit Tombol Benang |
| Kuantitas min Order: | 1 |
|---|---|
| Harga: | Nogotiation |
| Kemasan rincian: | Disesuaikan |
| Waktu pengiriman: | 15-20 hari |
| Menyediakan kemampuan: | 20000 pcs per bulan |
| Tempat asal: | CINA | Nama merek: | MIROC |
|---|---|---|---|
| Jenis: | Batu Bit | Jenis Pemrosesan: | Penempaan |
| diameter: | 70mm, 76mm, 89mm, 102mm | Bahan: | Tungsten Carbide dan Baja |
| Jenis Tombol: | Tombol Bulat, Balistik, Kerucut | warna: | Hijau, Kuning, Oranye, Hitam atau disesuaikan |
| Nomor Tombol: | 10 sampai 14 | Tipe Wajah: | Wajah Datar, Drop Center, Cembung, Cekung |
| Lubang pembilasan: | 2, 3, 4, 5 | Nama Produk: | Bit Tombol T45 |
| Cahaya Tinggi: | Mata bor tombol t45,mata bor tombol 70mm,mata bor tombol 102mm |
||
Deskripsi Produk
Bit tombol T45 banyak digunakan dalam pengeboran Bench, pengeboran lubang panjang bawah tanah untuk mencocokkan batang MF ekstensi, MM rod heavy duty top hammer Pengeboran.WDengan kualitas terbaik baja paduan dan karbida terbaik, kami memproduksi semua Alat Pengeboran Palu Atas dengan teknologi hot press dan beberapa proses perlakuan panas untuk memperpanjang masa pakai produk untuk keausan dan kinerja maksimum dalam kondisi pengeboran terberat.
Spesifikasi:
| Bit Tombol Berulir T45 | Sedikit Dia. | Tombol dan Ukuran (mm) | Lubang Pembilasan | Berat | Kode Produk | |||
| mm | inci | Depan | Mengukur | Depan | Samping | kg | ||
| Tombol Bit, Drop Center Tombol Bulat, B10XX |
70 | 2 3/4 | 3x11,1x19 | 6x11 | 3 | - | 2.2 | B1070-T45-S |
| 76 | 3 | 3x11,1x11 | 6x13 | 3 | - | 2.4 | B1076-T45-S | |
| Tombol Bit, Drop Center Tombol Bulat, B11XX |
89 | 3 1/2 | 3x11, 2x11 | 6x13 | 3 | 1 | 4.1 | B1189-T45-S |
| 102 | 4 | 3x13, 2x13 | 6x14 | 3 | 1 | 4,5 | B11102-T45-S | |
| Bit Tombol Tombol Bulat, B12XX |
70 | 2 3/4 | 4x11 | 8x11 | 2 | - | 2.3 | B1270-T45-S |
| 76 | 3 | 4x11 | 8x11 | 2 | - | 2.6 | B1276-T45-S | |
| 89 | 3 1/2 | 4x13 | 8x13 | 2 | - | 4.6 | B1289-T45-S | |
| Tombol Bit, Drop Center Tombol Bulat, B13XX |
70 | 2 3/4 | 4x10, 1x10 | 8x11 | 4 | - | 2.2 | B1370-T45-S |
| 76 | 3 | 4x11, 1x11 | 8x12 | 4 | - | 2.6 | B1376-T45-S | |
| 89 | 3 1/2 | 4x11, 1x11 | 8x12 | 4 | - | 4.6 | B1389-T45-S-1 | |
| 89 | 3 1/2 | 4x13, 1x13 | 8x13 | 4 | - | 4.6 | B1389-T45-S-2 | |
| 102 | 4 | 4x13, 1x13 | 8x14 | 4 | - | 4,5 | B13102-T45-S | |
| Bit Tombol Tombol Bulat, B14XX |
89 | 3 1/2 | 6x11 | 8x12 | 2 | - | 4.6 | B1489-T45-S |
| 102 | 4 | 6x13 | 8x16 | 2 | 1 | 5 | B14102-T45-S-1 | |
| Tombol Bit, Drop Center Tombol Bulat, B14XX |
102 | 4 | 4x13, 2x13 | 8x13 | 4 | 1 | 4,5 | B14102-T45-S-2 |
| Tombol Bit, Drop Center Tombol Balistik, B10XX |
70 | 2 3/4 | 3x11, 1x19 | 6x11 | 3 | - | 2.2 | B1070-T45-B |
| 76 | 3 | 3x11, 1x11 | 6x13 | 3 | 1 | 2.4 | B1076-T45-B | |
| Tombol Bit, Drop Center Tombol Balistik, B11XX |
89 | 3 1/2 | 3x11, 2x11 | 6x13 | 3 | 1 | 4.1 | B1189-T45-B |
| Bit Tombol Tombol Balistik, B12XX |
76 | 3 | 4x11 | 8x11 | 2 | - | 2.6 | B1276-T45-B |
| 89 | 3 1/2 | 4x13 | 8x13 | 2 | - | 4.6 | B1289-T45-B | |
| Bit Tombol Tombol Balistik, B13XX |
76 | 3 | 5x11 | 8x12 | 2 | 1 | 2.6 | B1376-T45-B-1 |
| Tombol Bit, Drop Center Tombol Balistik, B13XX |
70 | 2 3/4 | 4x10, 1x10 | 8x11 | 4 | - | 2.2 | B1370-T45-B |
| 76 | 3 | 4x11, 1x11 | 8x11 | 4 | - | 2.6 | B1376-T45-B-2 | |
| 76 | 3 | 4x11, 1x11 | 8x12 | 4 | - | 2.6 | B1376-T45-B-3 | |
| 89 | 3 1/2 | 4x11, 1x11 | 8x12 | 4 | - | 4.6 | B1389-T45-B-1 | |
| 89 | 3 1/2 | 4x13, 1x13 | 8x13 | 4 | - | 4.6 | B1389-T45-B-2 | |
| Bit Tombol Tombol Balistik, B14XX |
89 | 3 1/2 | 6x11 | 8x12 | 2 | - | 4.6 | B1489-T45-B |
