| Tempat asal: | Cina |
| Nama merek: | MIROC |
| Nomor model: | Mata bor tombol meruncing |
| Kuantitas min Order: | 1 buah |
|---|---|
| Kemasan rincian: | peti kayu |
| Waktu pengiriman: | 10-15 hari |
| Syarat-syarat pembayaran: | L / C, D / A, D / P, T / T, Western Union, MoneyGram |
| Menyediakan kemampuan: | 30000 pcs per bulan |
| Sertifikasi: | ISO9001,SGS | Tipe: | Bor |
|---|---|---|---|
| Jenis pengolahan: | Penempaan | Jenis mesin: | Alat Pengeboran, Peralatan Pengeboran |
| Menggunakan: | Penambangan Bijih, Pengeboran Batu, penambangan terbuka dan bawah tanah | Bahan: | insert tungsten carbide |
| Warna: | kuning, biru, emas atau Permintaan | Diameter: | 32mm - 41mm |
| Cahaya Tinggi: | 7 tombol jackhammer bit,8 tombol jackhammer bit,32mm jackhammer bit |
||

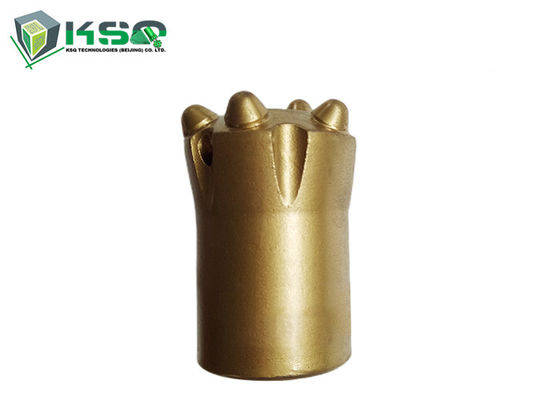

7 tombol 8 tombol Bit Diameter 32mm 34mm 36mm 38mm bit soket jackhammer
Kami memproduksi berbagai mata bor batu runcing dengan derajat yang berbeda seperti di bawah ini:
Diameter bit: 32mm ~ 48mm;
Derajat meruncing: 7 °, 11 °, 12 °;
Ukuran betis: Hex.19mm, Hex, 22mm dan Hex.25mm;
Konfigurasi tombol: 4 tombol, 5 tombol, 6 tombol, 7 tombol, 8 tombol, 9 tombol;
| ALAT PENGEBORAN BATU TAPERED - 7 ° | |||||||||
| Bor | Bit Dia. | Tombol dan Ukuran (mm) | Lubang Pembilasan | Bobot | Nomor Bagian | ||||
| mm | inci | Depan | Mengukur | Sudut | Depan | Sisi | kg | ||
|
Bit tombol, rok pendek |
32 | 1 1/4 | 1x8 | 3x8 | 35 ° | 1 | 1 | 0.24 | B432-7D-22 |
|
33 | 1 2/7 | 2x7 | 5x7 | 35 ° | 2 | 1 | 0.26 | B733-7D-22 |
| 34 | 1 1/3 | 2x7 | 4x7 | 40 ° | 1 | 1 | 0.29 | B634-7D-22 | |
| 35 | 1 3/8 | 2x7 | 5x8 | 35 ° | 1 | 1 | 0.33 | B735-7D-22 | |
| 36 | 1 3/7 | 1x8 | 3x9 | 40 ° | 1 | 1 | 0.37 | B436-7D-22 | |
| 36 | 1 3/7 | 2x7 | 5x8 | 35 ° | 1 | 1 | 0.37 | B736-7D-23 | |
| 38 | 1 1/2 | 1x8 | 3x9 | 35 ° | 1 | 1 | 0.37 | B438-7D-23 | |
| 38 | 1 1/2 | 2x7 | 5x8 | 35 ° | 1 | 1 | 0.38 | B738-7D-23 | |
| 38 | 1 1/2 | 2x7 | 5x9 | 40 ° | 2 | 1 | 0.38 | B738-7D-23 | |
| 40 | 1 4/7 | 1x8 | 3x9 | 30 ° | 1 | 1 | 0.38 | B440-7D-23 | |
| 40 | 1 4/7 | 1x9 | 3x10 | 30 ° | 1 | 1 | 0.4 | B440-7D-23 | |
| 40 | 1 4/7 | 1x9 | 3x9 | 35 ° | 1 | 1 | 0.4 | B440-7D-23 | |
| 40 | 1 4/7 | 2x7 | 5x9 | 35 ° | 1 | 1 | 0.4 | B740-7D-23 | |
| 42 | 1 2/3 | 1x8 | 3x9 | 30 ° | 1 | 1 | 0.4 | B442-7D-23 | |
| 42 | 1 2/3 | 1x9 | 3x10 | 30 ° | 1 | 1 | 0.43 | B442-7D-23 | |
| 42 | 1 2/3 | 1x9 | 3x9 | 35 ° | 1 | 1 | 0.43 | B442-7D-23 | |
| 42 | 1 2/3 | 2x8 | 5x9 | 35 ° | 1 | 1 | 0.43 | B742-7D-23 | |
| Rok panjang | 32 | 1 1/4 | 2x7 | 5x7 | 35 ° | 1 | 1 | 0.3 | B732-7D-22 |
| 33 | 1 2/7 | 2x7 | 5x7 | 35 ° | 1 | 1 | 0.31 | B733-7D-22 | |
| 35 | 1 3/8 | 2x7 | 5x8 | 35 ° | 1 | 1 | 0.36 | B735-7D-22 | |
| 38 | 1 1/2 | 2x7 | 5x9 | 35 ° | 1 | 1 | 0.41 | B738-7D-22 | |
| 41 | 1 5/8 | 2x7 | 5x9 | 35 ° | 1 | 1 | 0.42 | B741-7D-23 | |
| Batang bor meruncing | Panjangnya | Bobot | ||||||
| mm | kaki | kg | ||||||
| Hex batang runcing 22 x 108 mm | 600 | 2 | 1.93 | |||||
|
800 | 2 5/8 | 2.54 | |||||
| 1000 | 3 2/7 | 3.15 | ||||||
| 1200 | 3 8/9 | 3.76 | ||||||
| 1500 | 4 8/9 | 4.68 | ||||||
| 1600 | 5 1/4 | 4.98 | ||||||
| 1800 | 5 8/9 | 5.59 | ||||||
| 2000 | 6 5/9 | 6.2 | ||||||
| 2200 | 7 2/9 | 6.81 | ||||||
| 23.00 | 7 5/9 | 7.12 | ||||||
| 2400 | 7 7/8 | 7.42 | ||||||
| 2500 | 8 1/5 | 7.73 | ||||||
| 2600 | 8 5/9 | 8.03 | ||||||
| 3000 | 9 5/6 | 9.25 | ||||||
| 3500 | 11 1/2 | 10.78 | ||||||
| 4000 | 13 1/8 | 12.3 | ||||||
| 4500 | 14 3/4 | 13.83 | ||||||
| 5.000 | 16 2/5 | 15.35 | ||||||
| 5500 | 18 | 16.88 | ||||||
| 6000 | 19 2/3 | 18.3 | ||||||
| 4000 | 13 1/8 | 16.1 | ||||||
| 4700 | 15 3/7 | 18.9 | ||||||
| 5.000 | 16 2/5 | 22.1 | ||||||
| 5500 | 18 | 22.1 | ||||||
| 6000 | 19 2/3 | 24.1 | ||||||
