    Detail produk:

    Tempat asal: Cina
    Nama merek: MIROC BR Series Button Bit
    Nomor model: DTH Tombol Bit

    Syarat-syarat pembayaran & pengiriman:

    Kuantitas min Order: 1 Piece DTH Button Bit
    Harga: Negotiation
    Kemasan rincian: Kotak karton atau kotak kayu
    Waktu pengiriman: 10-20 hari
    Syarat-syarat pembayaran: L / C, T / T, MoneyGram, Western Union
    Menyediakan kemampuan: potongan-potongan 20000 per bulan
    Hubungi sekarang
    Detil Deskripsi produk
    Nama Produk: DTH Tombol Bit :
    Diameter: Warna:

    BR Series DTH Button Bit 64mm 70mm 76mm 95mm for BR1 BR2 BR3 DTH Hammer



    1'' 2'' Middle Air Pressure DTH Bits



    DTH Button Bits for BR1, BR2, BR2 Hammer.



    BR Series DTH Button Bit Specification



    1'' 2'' Middle Air Pressure DTH Bits
    DTH Button Bit Diameter Buttons and Size (mm) Flushing hole Weight
    mm inch Gauge Front kg
    BR1 64 2 1/2 6x10 3x10 2 2.6
    70 2 3/4 6x12 4x9 2 2.8
    76 3 6x13 5x10 2 3.2
    BR2 64 2 1/2 6x13 5x10 2 3.6
    70 2 3/4 6x13 5x11 2 4.0
    76 3 6x14 5x12 2 4.2

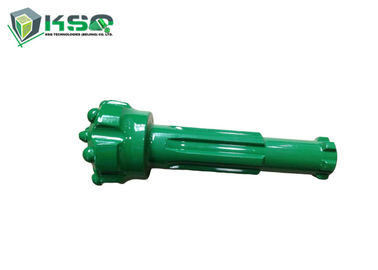

    BR2 76mm DTH Button Bit Photos:



    Middle Air Pressure BR1 BR2 BR3 Hammer DTH Button Bits of 64mm 70mm 76mm Diameterfunction gtElInit() {var lib = new google.translate.TranslateService();lib.translatePage('en', 'id', function () {});}



    Product: DTH Button Bit



    Diameter: 76mm



    Bit Shank: BR2



    Face Design: Convex



    Button/Carbide Type: Spherical



    Button Number and Diameter: 4x10mm front, 6x13mm gauge



    Flushing Holes: 2 front flushing holes



    Weight: 4.2kg per piece



    Color: Green



    More Photos:



    Middle Air Pressure BR1 BR2 BR3 Hammer DTH Button Bits of 64mm 70mm 76mm Diameterfunction gtElInit() {var lib = new google.translate.TranslateService();lib.translatePage('en', 'id', function () {});}

    Middle Air Pressure BR1 BR2 BR3 Hammer DTH Button Bits of 64mm 70mm 76mm Diameterfunction gtElInit() {var lib = new google.translate.TranslateService();lib.translatePage('en', 'id', function () {});}



    Bit Face Shape Selection:



    Center Drop Bit:

    For high penetration rates in soft to medium hard and fissured rock formations. Low to medium air pressure.

    Maximum hole deviation control.

    Concave Face

    The all-around application bit face specifically for medium hard and homogenerous rock formations.

    Good hole deviation control and good flushing capacity.

    Convex Face

    For high penetration rates in soft to medium-hard with low to medium air pressure. It is the most resistance to steel wash, any may reduce the load and wear on gauge buttons, but poor hole deviation control.

    Double Gauge Face

    This kind of face shape is suitable for fast penetration rates in medium to hard rock formations. Designed for high air pressure and good resistance to steel wash step gauge bit.

    Flat Face Bit

    This kind of face shape is suitable for hard to very hard and abrasive rock formation is applications with high air pressure. Good penetration rates and resistance to steel wash.



    Competitive Advantage

    • High-grade tungsten carbide inserts
    • Bit bodies manufactured from high-grade steel and processed using state-of-the-art CNC machinery and heat treatment



    We can design and manufacture the personalized products to meet your special applications, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, concave, convex, etc.), and flushing holes.



    Applications

    • Underground mining

    • Down the hole rock drilling



    KSQ Related DTH Button Bits

    Product DTH Button Bits
    Low Air Pressure CIR80, CIR90
    3’’ DHD3.5, M30,
    4’’ DHD340, SD4,QL40, M40
    5’’ DHD350, SD5,QL50, M50
    6’’ DHD360, SD6,QL60, M60
    8’’ DHD380, SD8,QL80, M80
    Color Green, Gold, Black or based on customer requirements.
    MOQ: No MOQ required for testing and trial order
