| Tempat asal: | Cina |
| Nama merek: | MIROC R32 Button Bit |
| Nomor model: | R32 Thread Button Bit |
| Kuantitas min Order: | 1 lembar |
|---|---|
| Harga: | Negotiable |
| Kemasan rincian: | Kotak karton atau kotak kayu |
| Waktu pengiriman: | 25 hari |
| Syarat-syarat pembayaran: | L/C, T/T |
| Menyediakan kemampuan: | potongan-potongan 20000 per bulan |
| produk: | Tombol R32 bit | Diameter: | 38mm 48mm 64mm 76mm |
|---|---|---|---|
| Lubang Pembilasan Depan: | 2 | Lubang Pembilasan Samping: | 1 |
| Warna: | hijau | Nomor bagian: | 4148300487 |
| Cahaya Tinggi: | bor industri,mengeras bor baja |
||

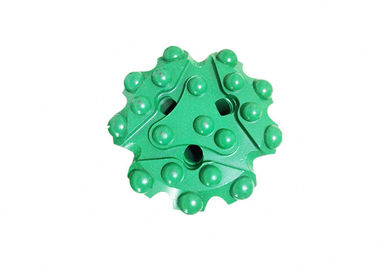

Mata Bor R32 Dengan Sisipan Tungsten Carbide YK05 Kelas Tinggi
Benang: R32
Warna: Hijau atau Berdasarkan kebutuhan Pelanggan
Mengetik: Mata Bor R32
Banyak digunakan drifting dan tunneling
Spesifikasi Bit Tombol Ulir R32
| Bit Tombol R32 | ||||||||
| Diameter | Tombol dan Ukuran (mm) | Lubang pembilasan | Berat | Nomor Bagian | ||||
| mm | inci | Depan | Mengukur | Sudut | Depan | Samping | kg | |
| Bulat | ||||||||
| 41 | 1 5/8 | 2×9 | 4×9 | 35° | 1 | 1 | 0.6 | 4148300487 |
| 41 | 1 5/8 | 2 × 8 | 5×9 | 35° | 1 | 1 | 0,7 | 4148300488 |
| 43 | 1 5/7 | 2×9 | 5×9 | 35° | 1 | 2 | 0,7 | 4148300489 |
| 43 | 1 5/7 | 2×9 | 5×10 | 35° | 1 | 1 | 0,7 | 4148300490 |
| 43 | 1 5/7 | 2×9 | 6×9 | 40 ° | 2 | - | 0,7 | 4148300491 |
| 45 | 1 7/9 | 2×9 | 5 × 11 | 30 ° | 1 | 1 | 0.8 | 4148300492 |
| 45 | 1 7/9 | 2×9 | 6×10 | 35° | 2 | - | 0.8 | 4148300493 |
| 45 | 1 7/9 | 3×8 | 6×10 | 30 ° | 3 | - | 0.8 | 4148300494 |
| 48 | 1 8/9 | 2×9 | 5 × 11 | 35° | 1 | 1 | 0.9 | 4148300495 |
| 48 | 1 8/9 | 2×9 | 6×10 | 40 ° | 2 | - | 0.9 | 4148300496 |
| 48 | 1 8/9 | 3×8 | 6×10 | 40 ° | 3 | - | 0.9 | 4148300497 |
| 48 | 1 8/9 | 3×9 | 6×10 | 30 ° | 3 | - | 0.9 | 4148300498 |
| 51 | 2 | 2 × 10 | 5 × 11 | 35° | 1 | 1 | 1 | 4148300499 |
| 51 | 2 | 2 × 10 | 6×10 | 40 ° | 2 | - | 1 | 4148300500 |
| 51 | 2 | 3×9 | 6×10 | 35° | 3 | - | 1 | 4148300501 |
| 57 | 2 1/4 | 3×9 | 6 × 11 | 35° | 3 | - | 1.3 | 4148300502 |
| 64 | 2 1/2 | 3×10, 1×10 | 6 × 11 | 35° | 3 | - | 1.6 | 4148300503 |
| 64 | 2 1/2 | 4×10 | 8×10 | 40 ° | 2 | - | 1.6 | 4148300504 |
| 76 | 3 | 4 × 11 | 8 × 11 | 40 ° | 2 | - | 2.6 | 4148300505 |
| Balistik | ||||||||
| 41 | 1 5/8 | 2 × 8 | 5×9 | 40 ° | 1 | 1 | 0,7 | 4148300506 |
| 43 | 1 5/7 | 2×9 | 5×9 | 40 ° | 1 | 2 | 0,7 | 4148300507 |
| 43 | 1 5/7 | 2×9 | 6×9 | 40 ° | 2 | - | 0,7 | 4148300508 |
| 43 | 1 5/7 | 3×8 | 6 × 8 | 40 ° | 3 | 1 | 0,7 | 4148300509 |
| 45 | 1 7/9 | 2×9 | 5 × 11 | 30 ° | 1 | 2 | 0.8 | 4148300510 |
| 45 | 1 7/9 | 2×9 | 6×9 | 40 ° | 2 | 2 | 0.8 | 4148300511 |
| 45 | 1 7/9 | 3×8 | 6×9 | 40 ° | 3 | 1 | 0.8 | 4148300512 |
| 48 | 1 8/9 | 2×9 | 5 × 11 | 35° | 1 | 1 | 0.9 | 4148300513 |
| 48 | 1 8/9 | 2×9 | 6×10 | 40 ° | 2 | - | 0.9 | 4148300514 |
| 48 | 1 8/9 | 3×8 | 6×10 | 40 ° | 3 | - | 0.9 | 4148300515 |
| 51 | 2 | 2 × 10 | 6×10 | 40 ° | 2 | - | 1 | 4148300516 |
| 51 | 2 | 3×9 | 6×10 | 40 ° | 3 | 1 | 1 | 4148300517 |
| 54 | 2 1/8 | 3×9 | 6×10 | 40 ° | 3 | 1 | 1 | 4148300518 |
| 57 | 2 1/4 | 3×9 | 6 × 11 | 35° | 3 | - | 1.3 | 4148300519 |
| 64 | 2 1/2 | 4×10 | 8×10 | 40 ° | 2 | - | 1.6 | 4148300520 |
Spesifikasi Bit Tombol Tarik Ulir R32
| R32 Retract Button Bit | ||||||||
| Diameter | Tombol dan Ukuran (mm) | Lubang pembilasan | Berat | Nomor Bagian | ||||
| mm | inci | Depan | Mengukur | Sudut | depan | Samping | kg | |
| Bulat | ||||||||
| 45 | 1 7/9 | 3×8 | 6×9 | 40 ° | 3 | - | 1.1 | 4148300521 |
| 48 | 1 8/9 | 3×9 | 6×10 | 30 ° | 3 | - | 1.2 | 4148300522 |
| 51 | 2 | 3×9 | 6×10 | 30 ° | 3 | - | 1.4 | 4148300523 |
| 64 | 2 1/2 | 3×10, 1×10 | 6 × 11 | 35° | 3 | - | 2.2 | 4148300524 |
| 64 | 2 1/2 | 4×10 | 8×10 | 40 ° | 2 | - | 2.2 | 4148300525 |
| 76 | 3 | 4×11, 1×11 | 8 × 11 | 35° | 4 | 1 | 3.5 | 4148300526 |
| Balistik | ||||||||
| 45 | 1 7/9 | 3×8 | 6×9 | 40 ° | 3 | - | 1.1 | 4148300527 |
| 48 | 1 8/9 | 3×9 | 6×10 | 30 ° | 3 | - | 1.2 | 4148300528 |
| 51 | 2 | 3×9 | 6×10 | 30 ° | 3 | - | 1.4 | 4148300529 |
| 64 | 2 1/2 | 3×10, 1×10 | 6 × 11 | 35° | 3 | - | 2.2 | 4148300530 |
| 64 | 2 1/2 | 4×10 | 8×10 | 40 ° | 2 | - | 2.2 | 4148300531 |
| 76 | 3 | 4×11, 1×11 | 8 × 11 | 35° | 4 | 1 | 3.5 | 4148300532 |
Aplikasi
Digunakan dalam pengeboran lubang kecil.
